Product Details:
Payment & Shipping Terms:
|
| Backing Film: | Glass Cloth | Adhesive: | Silicone |
|---|---|---|---|
| Color: | White | Thickness: | 0.18-0.20mm |
| High Light: | 0.22mm White Heat Resistant Tape,White Heat Resistant Tape ROHS 2.0,0.22mm heat proof insulation tape |
||

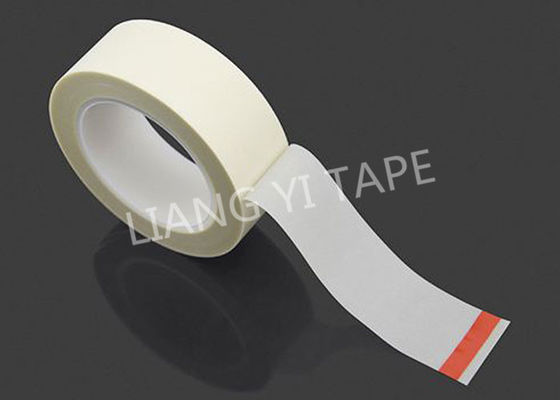

Single side silicone adhesive Glass fabric cloth Insulation heat resistance tape
Introduction:
Glass fiber Cloth Tape is a insulation tape that has a resin- and varnish-absorptive glass fiber cloth backing and is on a 3 inch paper core. Glass Fiber Cloth Electrical Tape is an aesthetically pleasing tape which offers excellent conformability in coil wrapping applications up to 180°C.Confirm to ROHS 2.0.
Data Sheet:
| Properties | Typical Values |
| Adhesive | silicone |
| Operating Temperature | 200°C |
| Color | White color |
| Total Thickness | 0.18mm-0.22mm |
| Dielectric Breakdown | >3KV |
| Insulation Resistance | 2 x 104 MW |
| Breaking Strength | 10KN/m |
| Elongation (% at break) | >3 |
| Electrolytic Corrosion Factor | 1.0 |
| Adhesion to Steel | >800g/25mm |
Applications:
Coil wrapping for motor
Wire harness bundle.
Electrical Equipment Manufacturing.
Electrical insulation.
H-class insulation protection amid 180 °C
High heat for 200°C/392°F
Quartz tube wrapping
Features:
* Made with high quality glass fabrics
* High temperature resist, up to 180 degree
* Soft , Anti-aging, Easy punching
* Anti acid, antifungal
* Good insulation performance
Our advantages:
1.Factory supplier: We are a manufacturer professional in product tapes ,factory price provide.
2.Competitive price: Factory direct sales, professional production, quality assurance,
3.Perfect service: Delivery in time, and any question will be replied in 24 hours
Sample provides:
1. We send sample at most 20mm width roll for free.
2. Customer shall bear the freight charges.
3. Sample and freight charge just a show of your sincerity.
4. It is workable to most of our clients Thanks for cooperation.
FAQ:
Q: Is the sample free?
A: Yes, the sample is free, but we need you pay express charges. The express charge will be collected if you have courier account. If you don’t have courier account, we will choose a cheap express method for you. The express charges shall be deducted when you place an order. If you have shipping agent in China, we will undertake domestic shipping charges to your agent.
Q: What is the lead time?
A: It usually take 5~8 days to finish your order.
Q: What about the width of the tape?
A:We could cut any roll width according to the customer’s requirement.
Q:What certificates do you have for your products?
A:UL, SGS, ROHS,ISO900,ISO14001,IATF16949 certificates for our products.
Q: Will you accept us to visit you?
A: Warmly welcome, we can show arond our factory and supplying ability and wish to bulid a long time corporation with you.
